Product Overview

DR-120, 240, 480 series are 240, 480W single group output enclosed power supply, which use 85-264VAC full range AC input to provide 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the efficiency of up to 91.5%, the design of smart fan with metal mesh enclosure enhances the heat dissipation capability, so that DR-120, 240, 480 can work in the temperature range of - 30C to+70 ° C without a fan. The terminal system can easily meet international energy requirements. The DR-120, 240 and 480 have complete protection functions; It complies with TUV EN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. DR-120, 240 and 480 series provide a cost-effective solution for various industrial applications.

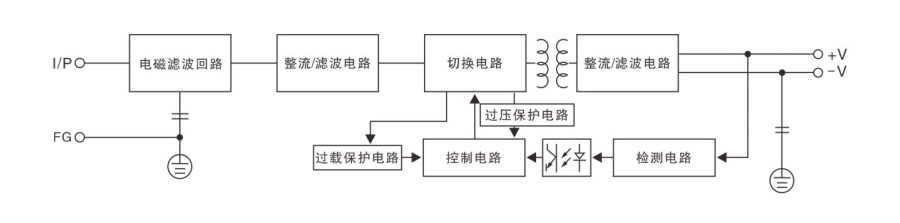

Principle Block Diagram

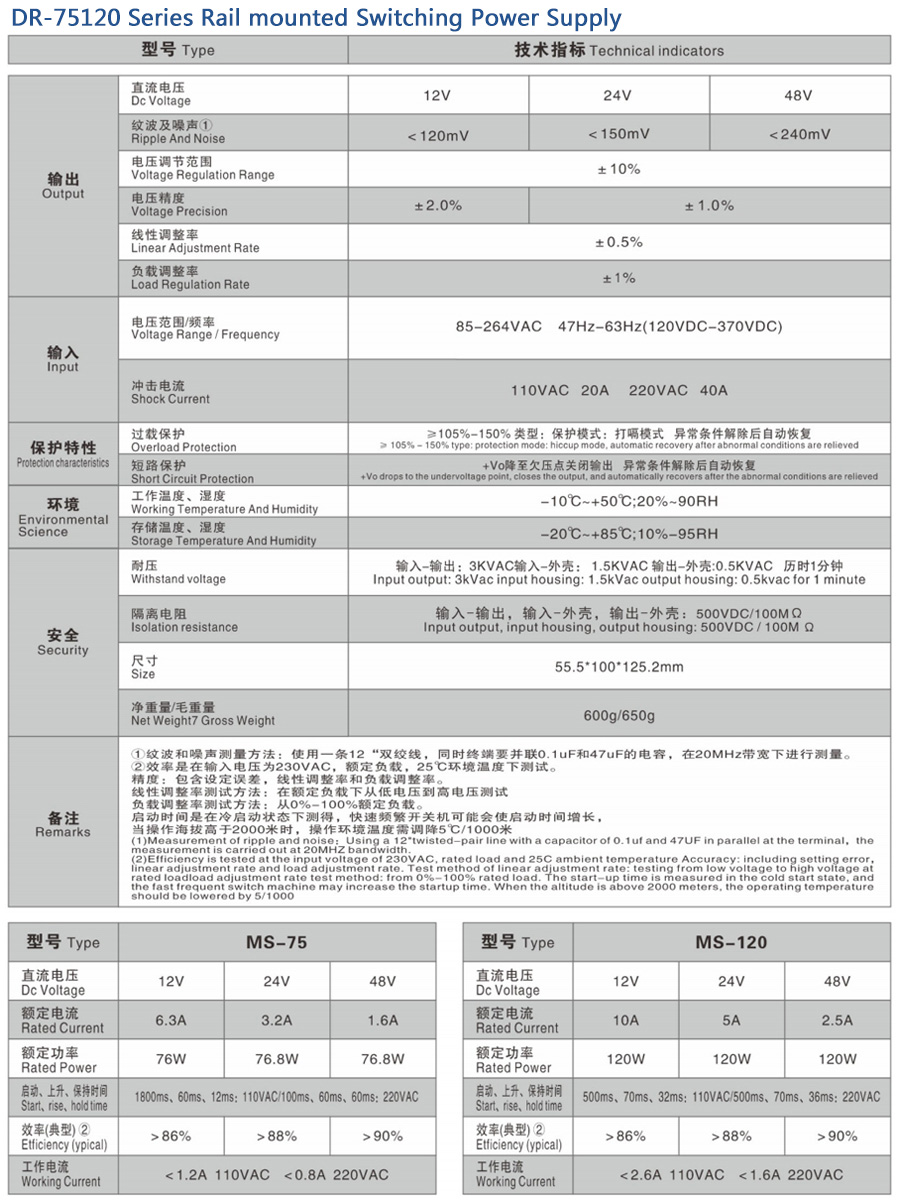

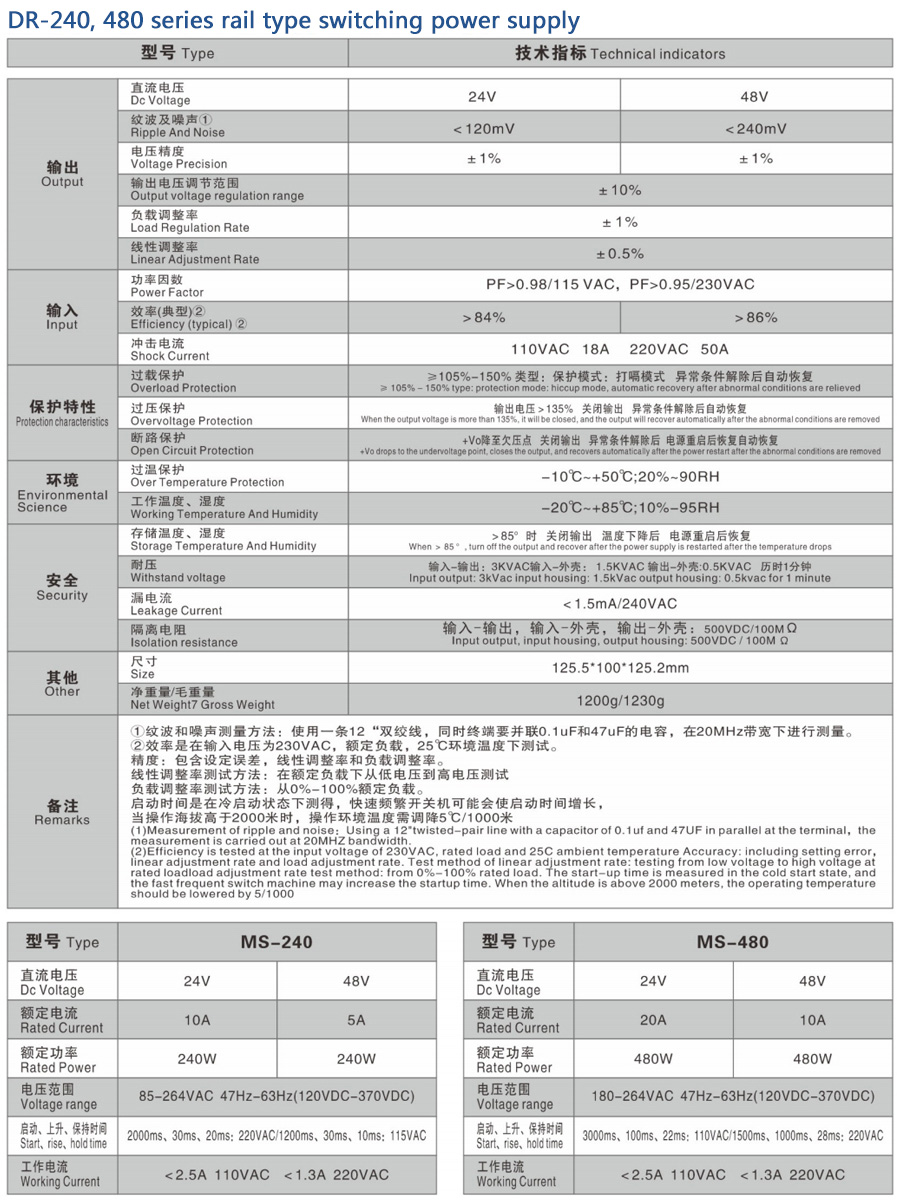

Product Technical Parameters
