Product Overview

S-800 and 1000 series are 800 and 1000 single group output enclosed power supplies, which use 85-264VAC full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the high efficiency of 91.5%, the design of smart fan with metal mesh enclosure enhances the heat dissipation capability, making the S-800 and 1000 work more stably in harsh environments, and making the terminal system easily meet international energy requirements. The S-800 and 1000 have complete protection functions; It complies with TUV EN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. S-800 and 1000 series provide a cost-effective solution for various industrial applications.

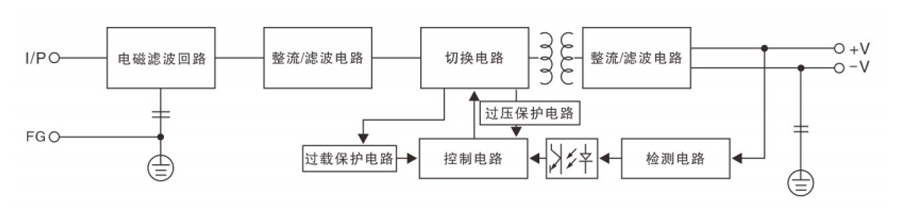

Principle Block Diagram

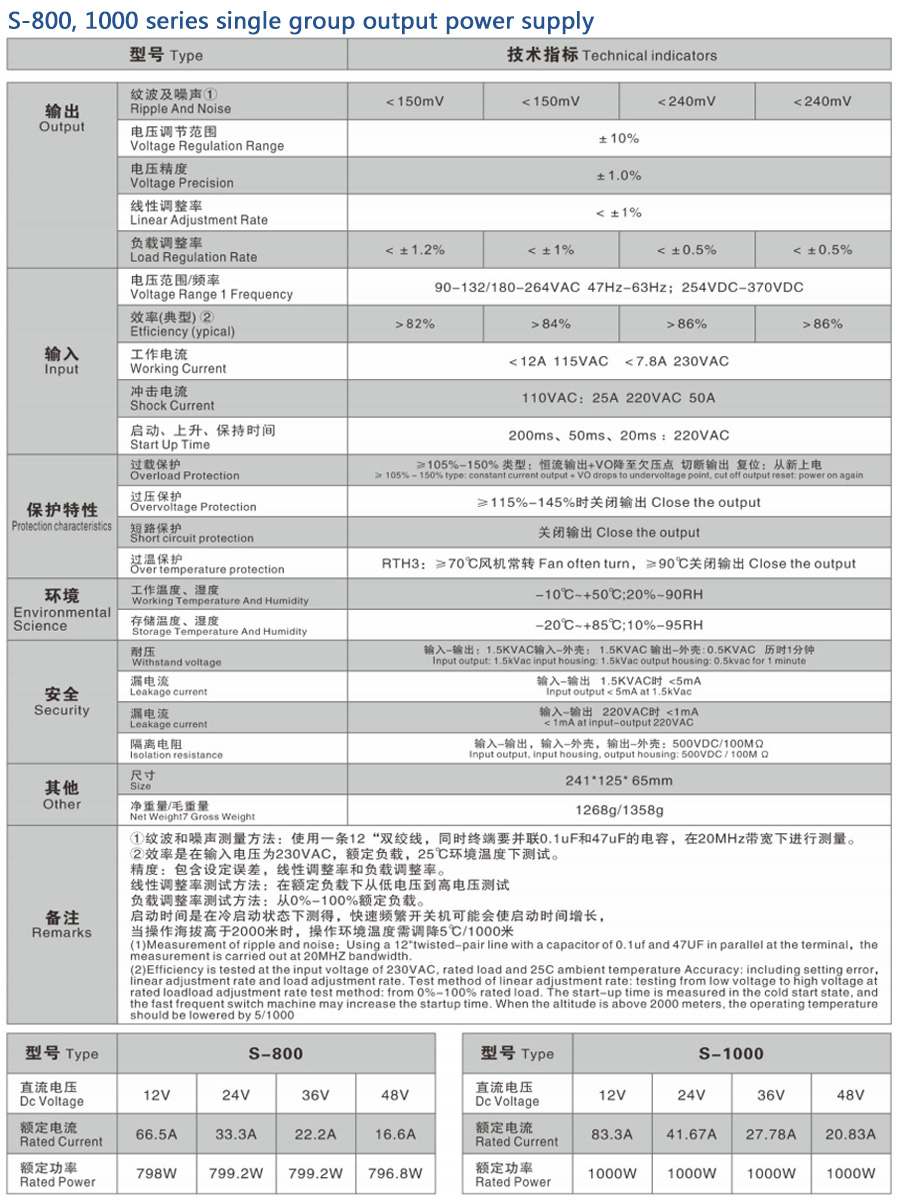

Product Technical Parameters
