S-75 series

S-75 series

S-75 series
S-75 series is a 60W single group output enclosed power supply with 85-264VAC full…
Category:S series switching power supply
Hits:502

Consulting telephone:13968738096

Detailed description

Product Overview

S-75 series is a 60W single group output enclosed power supply with 85-264VAC full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the efficiency of up to 91.5%, the design of the metal mesh enclosure enhances the heat dissipation capability, so that the S-75 can work in the temperature range of - 30C to+70C without fans. The terminal system can easily meet international energy requirements. S-75 has complete protection function and 3G vibration resistance; It complies with TUVEN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. S-75 series provides a cost-effective solution for various industrial applications.

Principle Block Diagram

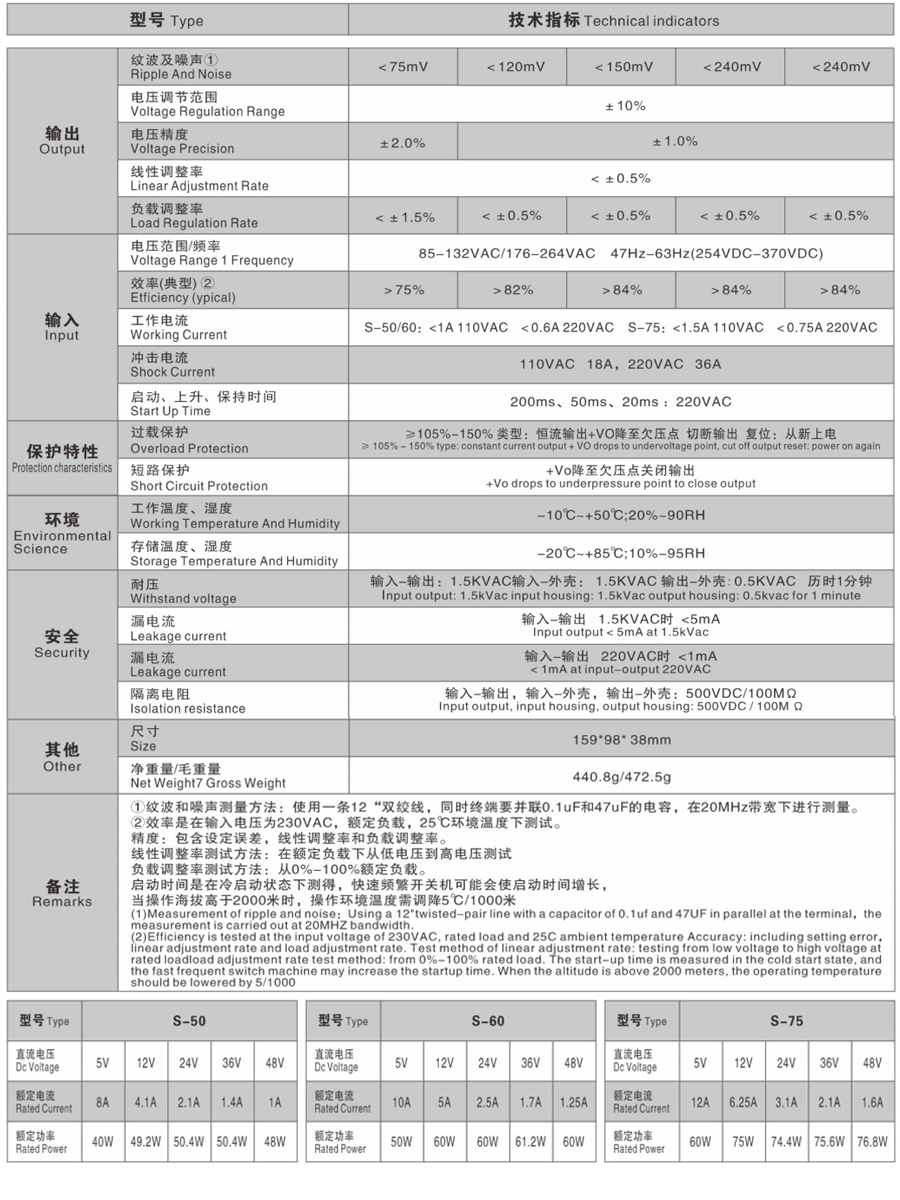

Product Technical Parameters
