Product Overview

LRS-75 series is a 75W single group output enclosed power supply with 30mm low profile design. It adopts 85-264VAC full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the efficiency of up to 91.5%, the design of the metal mesh enclosure has enhanced the heat dissipation capability, so that the LRS-75 can work in the temperature range of - 30C to+70C without fans. The terminal system can easily meet the international energy requirements by providing ultra-low no-load power consumption (less than 0.3W). LRS-75 has complete protection function and 5G vibration resistance; It complies with TUVEN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. LRS-75 series provides a cost-effective solution for various industrial applications.

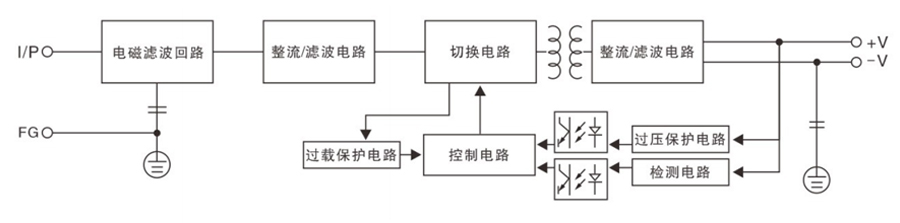

Principle Block Diagram

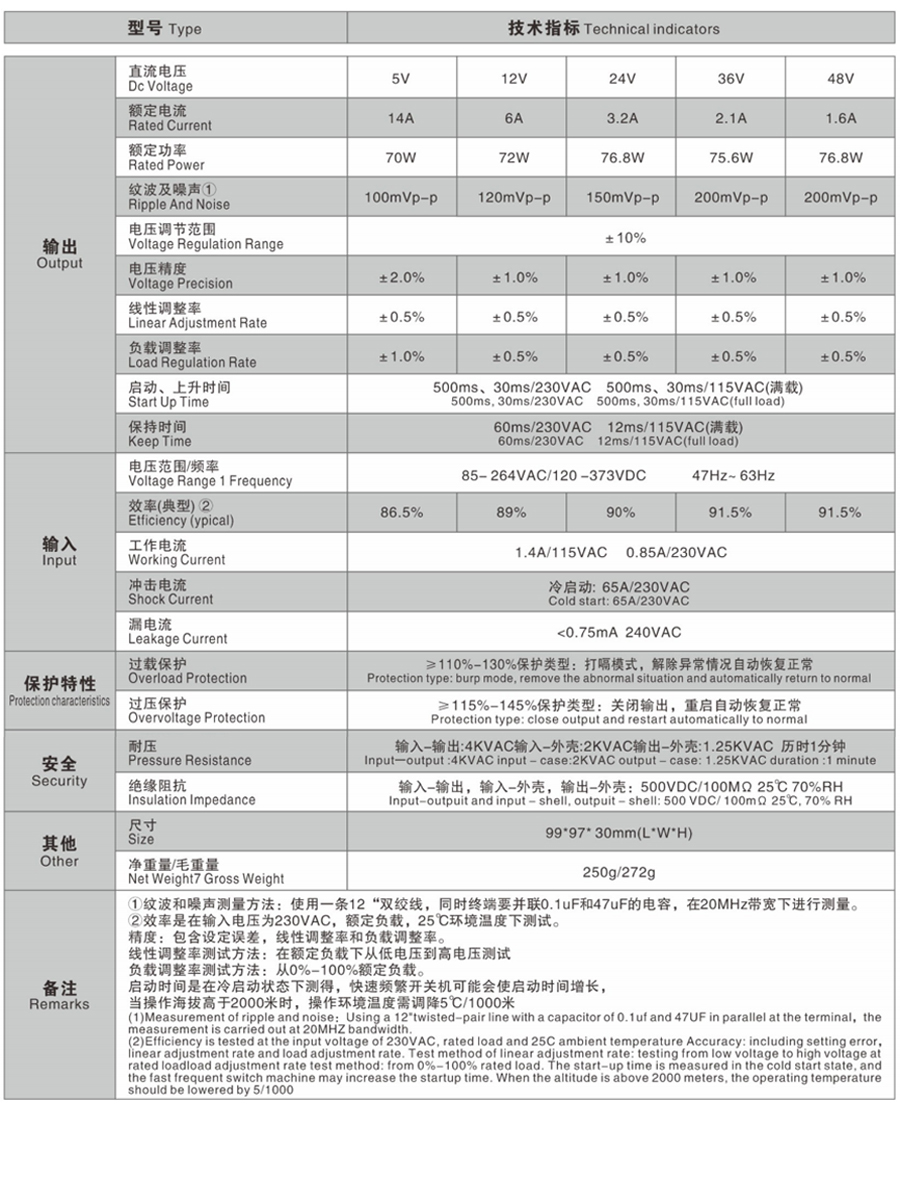

Product Technical Parameters
