Product Overview

DR-15 series is a 15W single group output enclosed power supply, which adopts 85-264VAC full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the efficiency of up to 91.5%, the design of the metal mesh enclosure enhances the heat dissipation capability, so that the DR-15 can work in the temperature range of - 30C to+70 ° C without fans. The terminal system can easily meet international energy requirements. DR-15 has complete protection function; It complies with TUVEN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. The DR-15 series provides a cost-effective solution for various industrial applications.

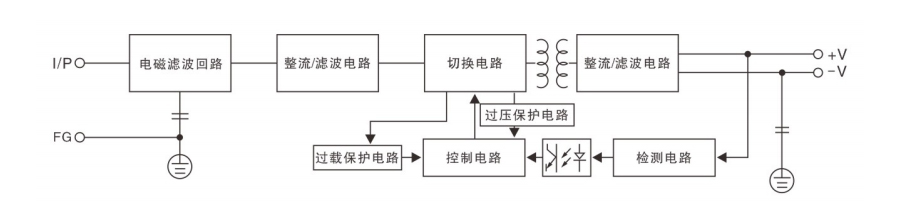

Principle Block Diagram

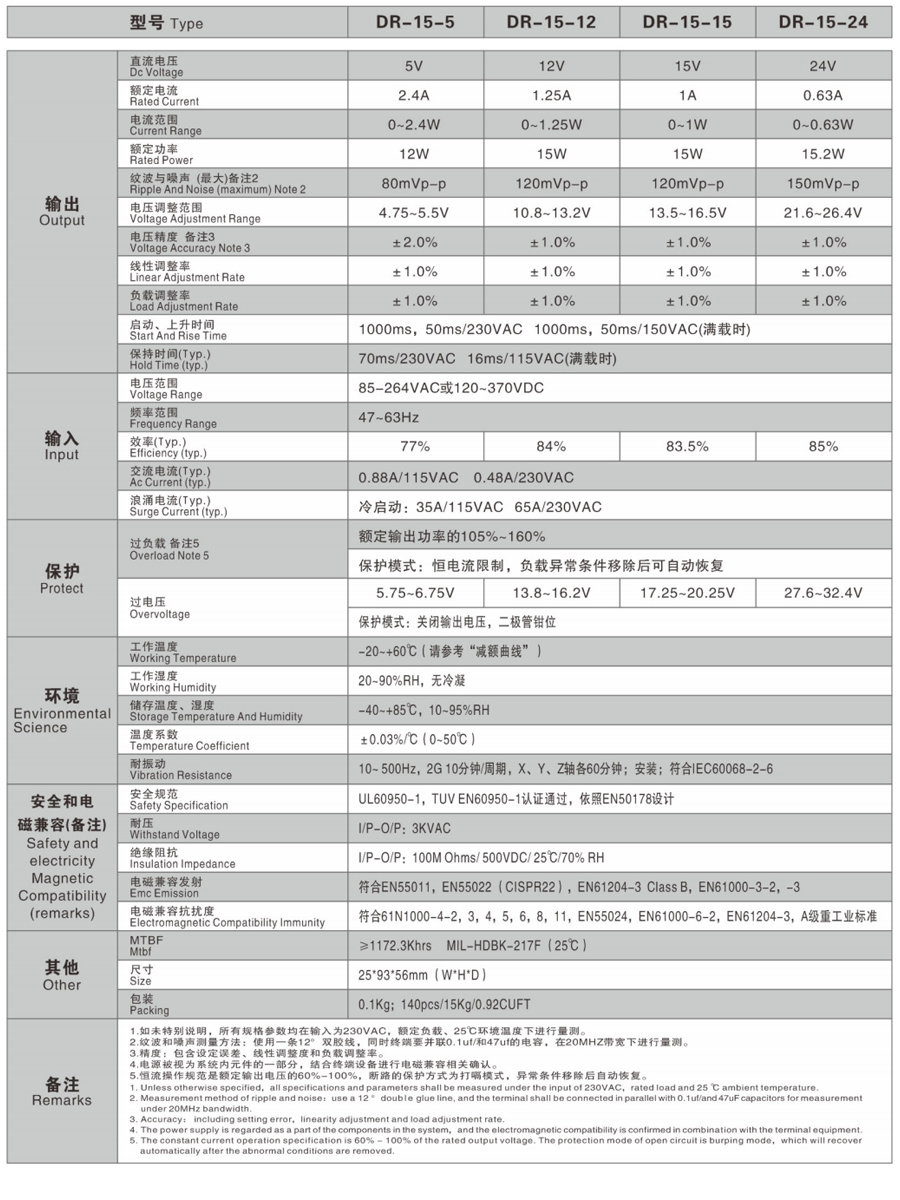

Product Technical Parameters
