DR-30、45、60 series

DR-30、45、60 series

DR-30、45、60 series
DR-30, 45, 60 series are a 30, 45, 60W single group output enclosed power supply, …
Category:DR Series
Hits:701

Consulting telephone:13968738096

Detailed description

Product Overview

DR-30, 45, 60 series are a 30, 45, 60W single group output enclosed power supply, which uses 85 - 264VAC full range AC input to provide 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the high efficiency of 91.5%, the design of intelligent fan with metal mesh enclosure has enhanced the heat dissipation capacity, so that DR-30, 45, 60 can work in the temperature range of - 30 ° C to+70 ° C without a fan. The terminal system can easily meet international energy requirements. DR-30, 45 and 60 have complete protection functions; It complies with TUV EN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. DR-30, 45 and 60 series provide a cost-effective solution for various industrial applications.

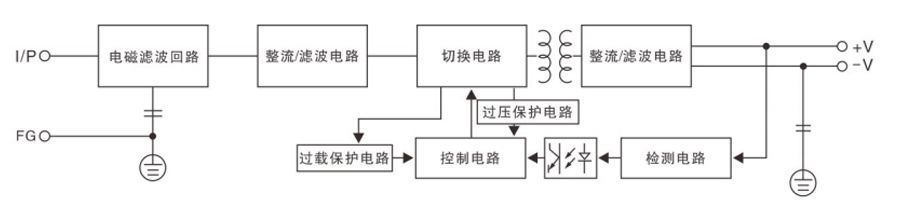

Principle Block Diagram

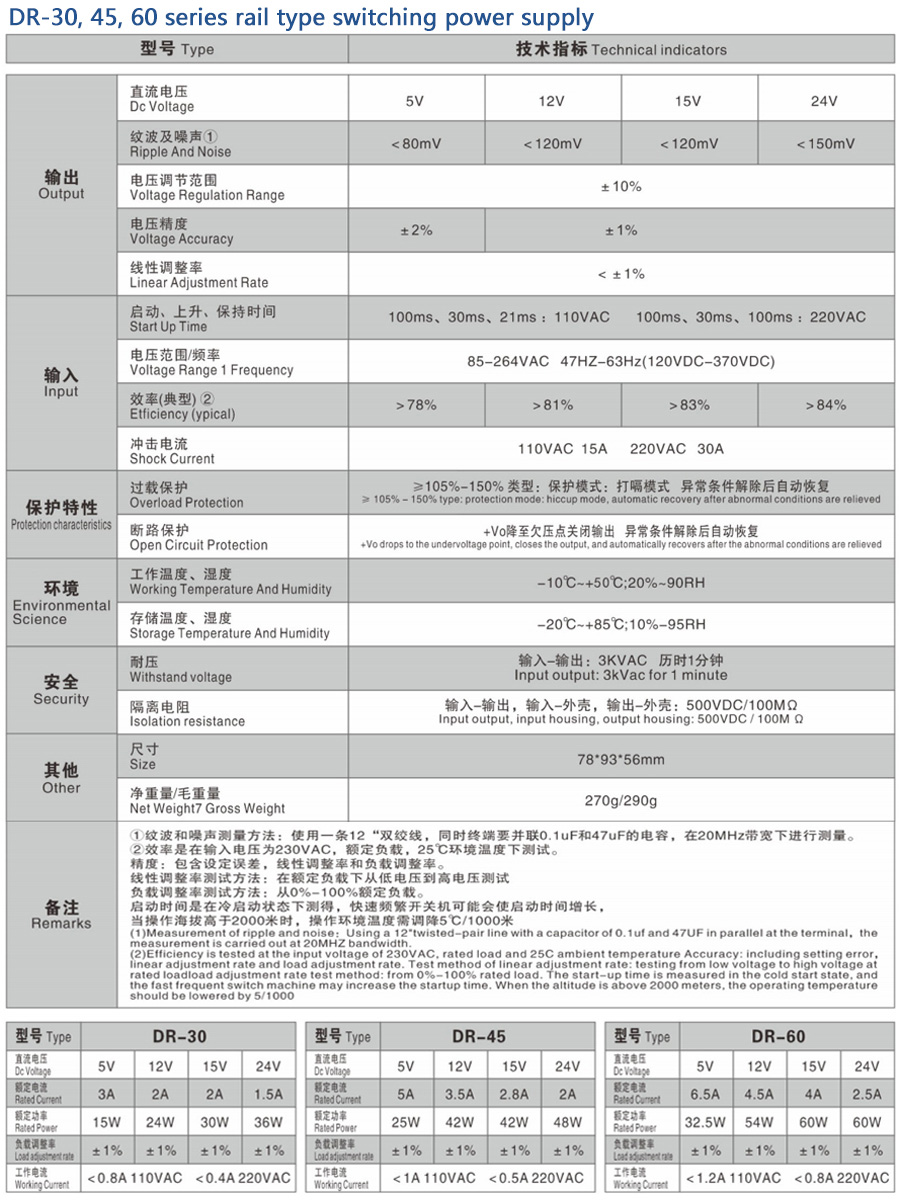

Product Technical Parameters

No related files are downloaded
