Product Overview

MDR-10, 20, 40, 60, 100 series is a 10, 20, 40, 60, 100 single group output enclosed power supply, which uses 85 - 264VAC full range AC input to provide 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the high efficiency of 91.5%, the design of smart fan with metal mesh enclosure has enhanced the heat dissipation capacity, enabling the MDR-10, 20, 40, 60, 100 to work in the temperature range of - 30 ° C to+70 ° C without a fan, which can easily enable the terminal system to meet international energy requirements. MDR-10, 20, 40, 60 and 100 have complete protection function and 5G vibration resistance; It complies with TUV EN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. MDR-10, 20, 40, 60 and 100 series provide a cost-effective solution for various industrial applications.

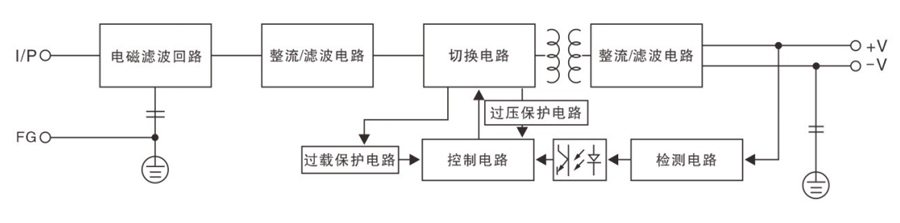

Principle Block Diagram

Product Technical Parameters
