Product Overview

S-250 series is a 250 single group output enclosed power supply, which adopts 85-264VAC full range AC input, and the whole series provides 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the high efficiency of 91.5%, the design of smart fan with metal mesh enclosure enhances the heat dissipation capability, making the S-201 work more stably in harsh environments, and making the terminal system easily meet international energy requirements. S-250 has complete protection function; It complies with TUV EN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. S-250 series provides a cost-effective solution for various industrial applications.

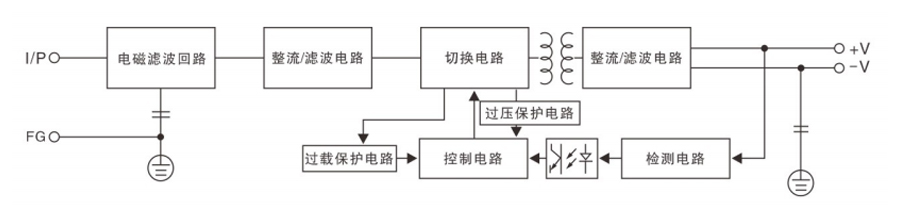

Principle Block Diagram

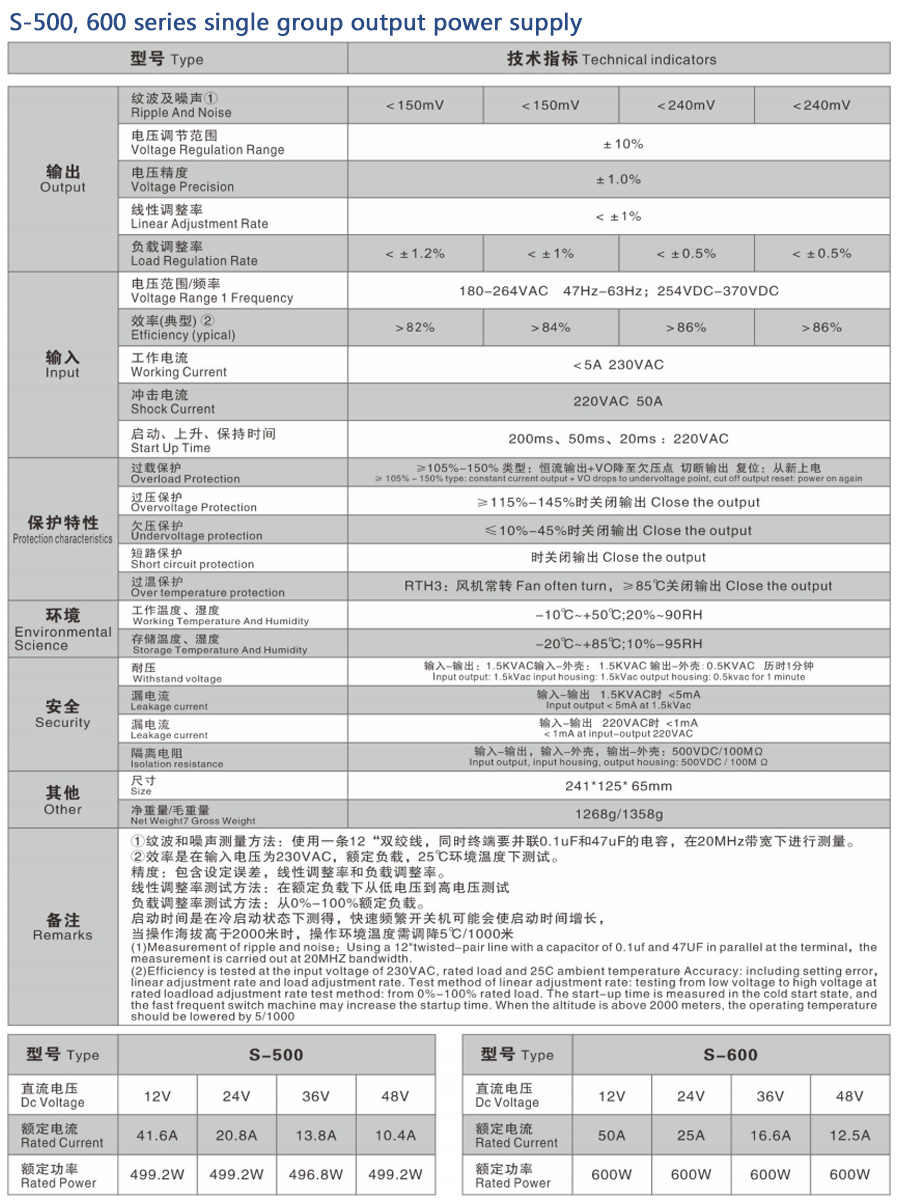

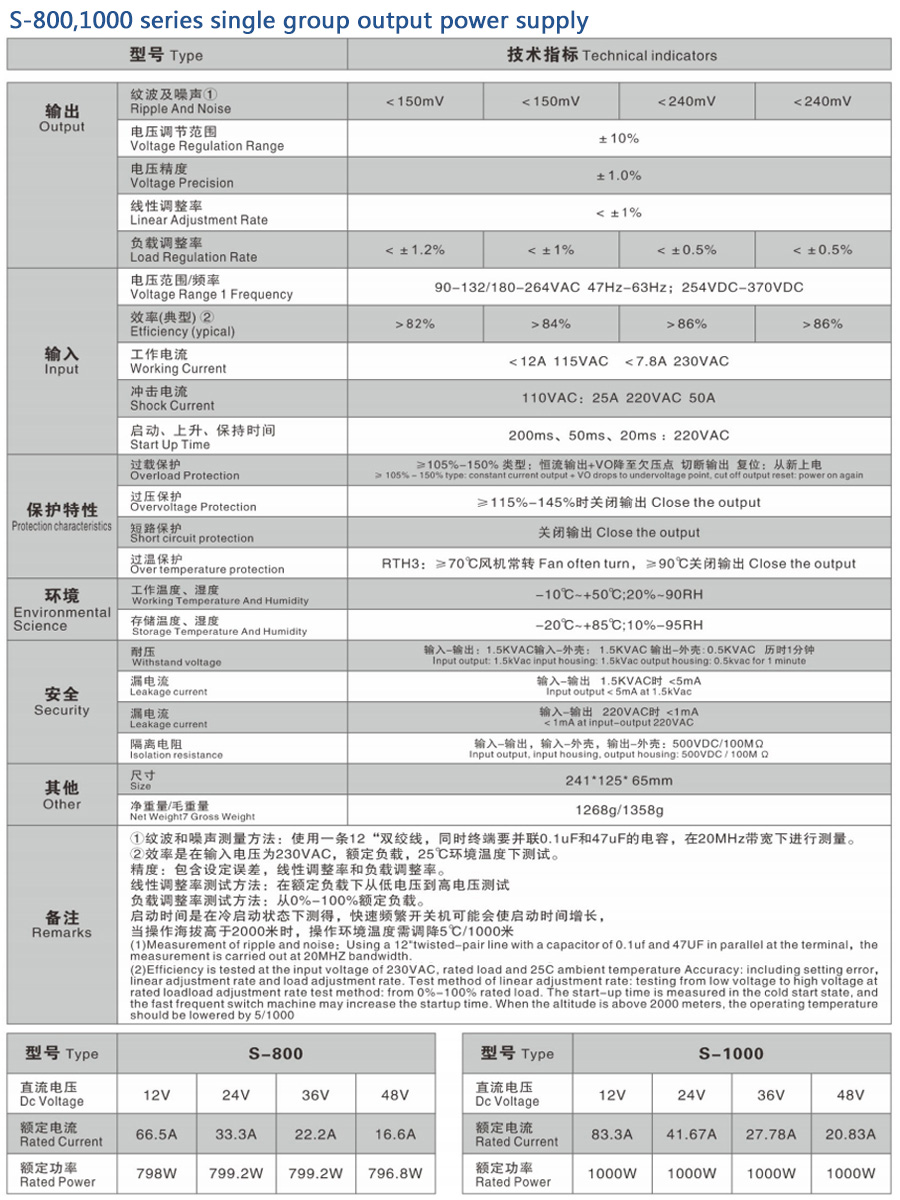

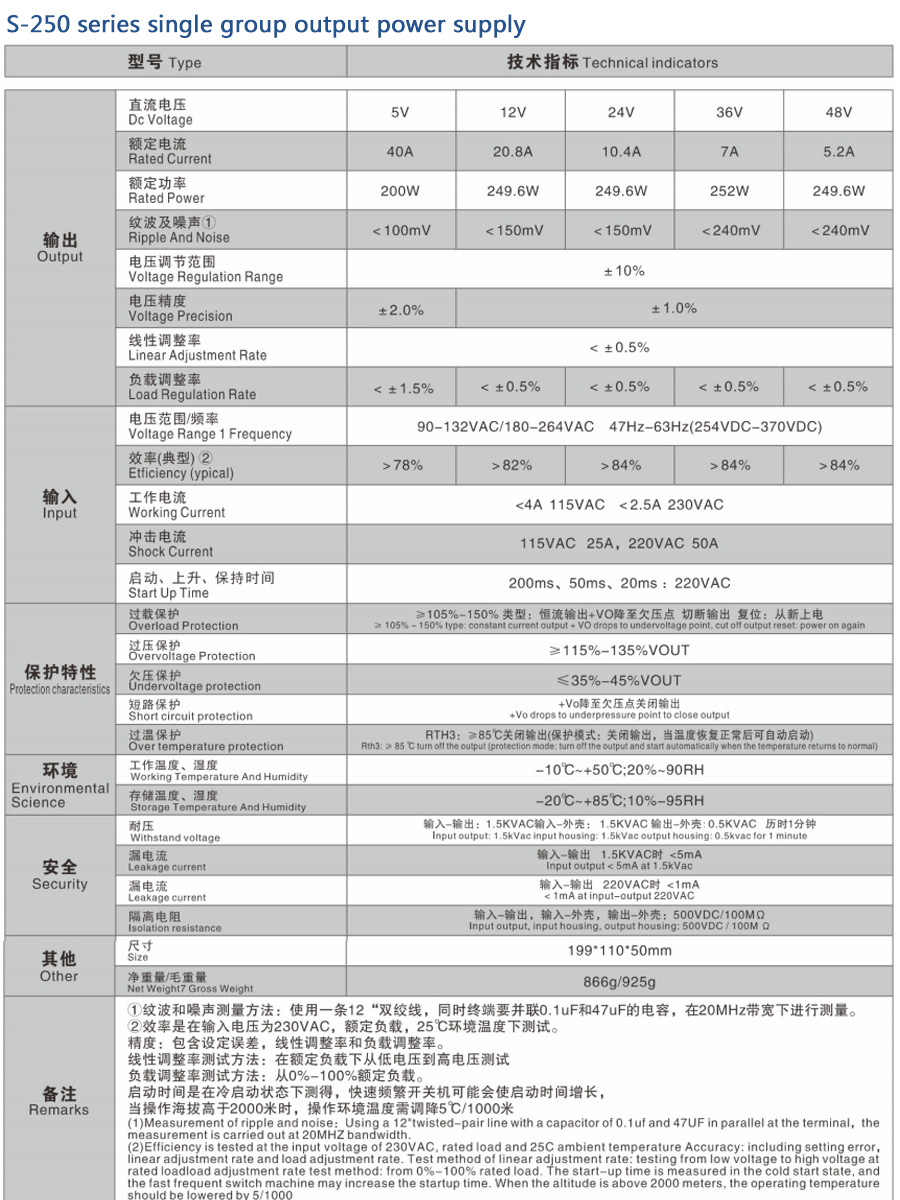

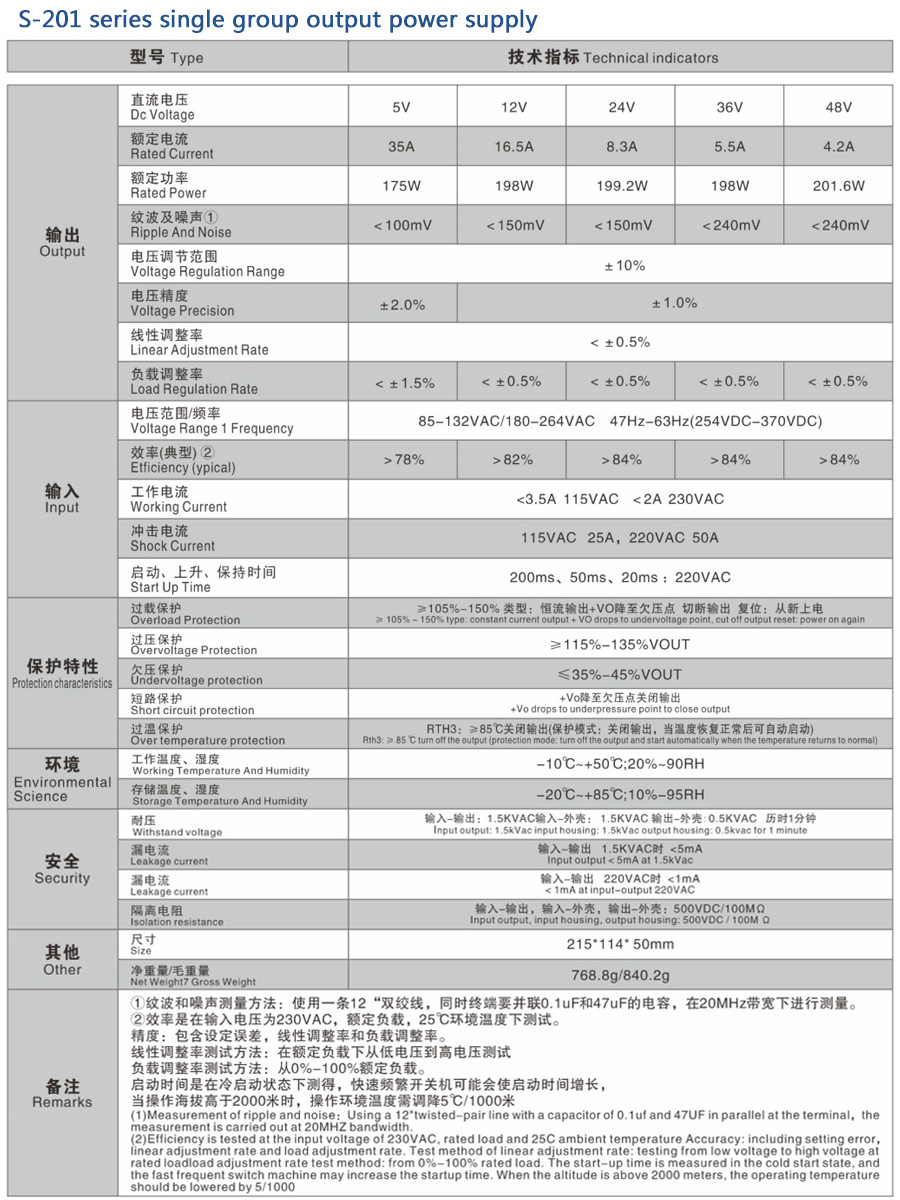

Product Technical Parameters
