Product Overview

S-100 and 120 series are 100 and 120 single group output enclosed power supplies, which use 85-264VAC full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output. In addition to the high efficiency of 91.5%, the design of the metal mesh enclosure has enhanced the heat dissipation capacity, so that the S-100 and 120 can work in the temperature range of - 30C to+70C without fans. The terminal system can easily meet international energy requirements. S-100 and 120 have complete protection function and 3G vibration resistance; It complies with TUVEN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. S-100 and 120 series provide a cost-effective solution for various industrial applications.

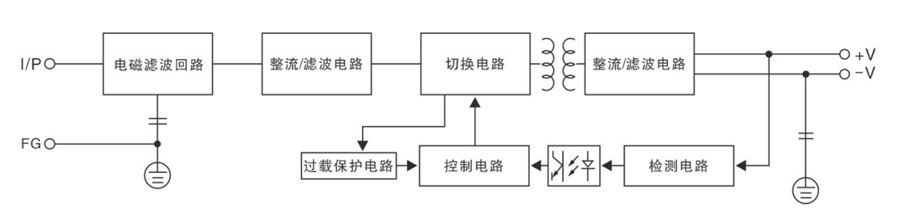

Principle Block Diagram

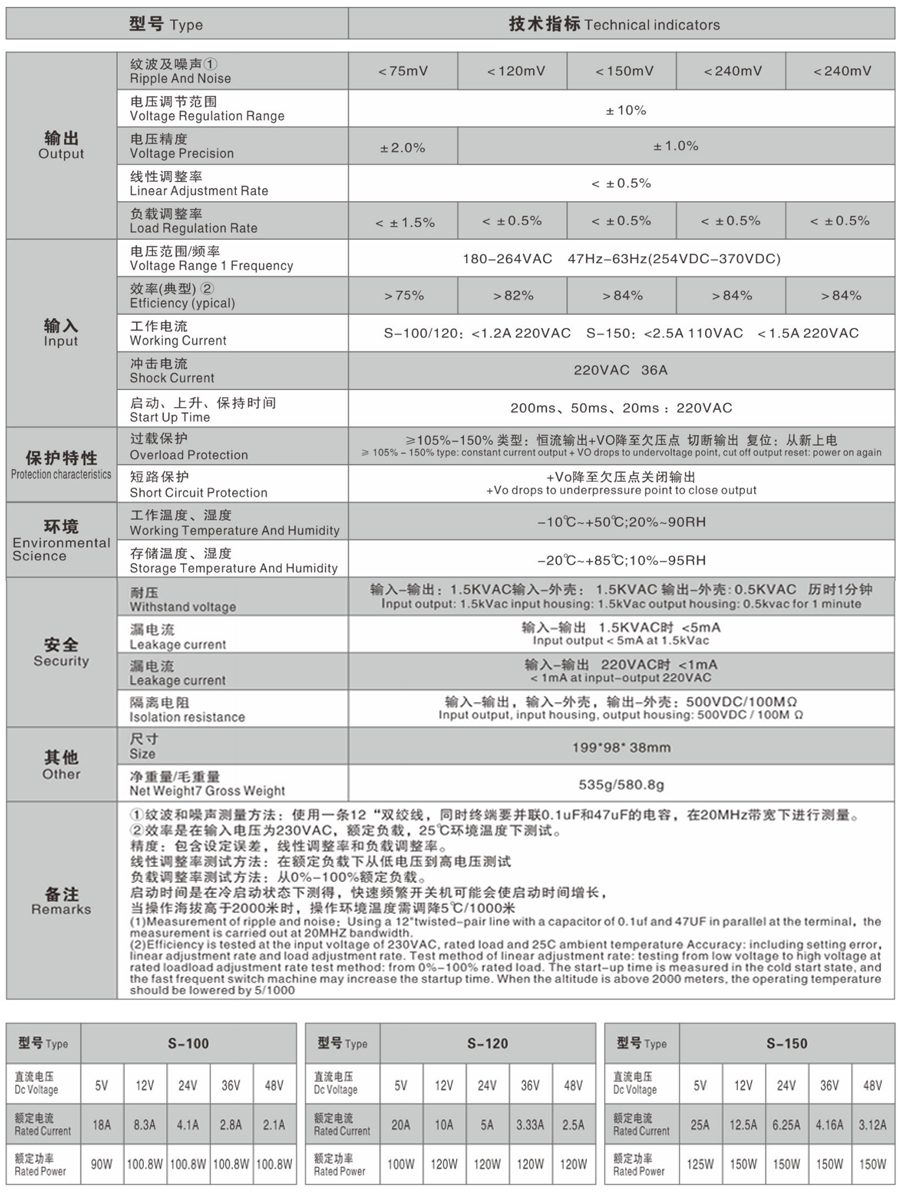

Product Technical Parameters
